Stretch film machine also called Cast stretch film machine,machineuse LDPE and LLDPE to produce stretch film, which widely used for pack airport luggage packing,pallet packing,carton packing,building material packing, auto parts packing, hardware parts packing etc.
Stretch film machine also called Cast stretch film machine,machineuse LDPE and LLDPE to produce stretch film, which widely used for pack airport luggage packing,pallet packing,carton packing,building material packing, auto parts packing, hardware parts packing etc.

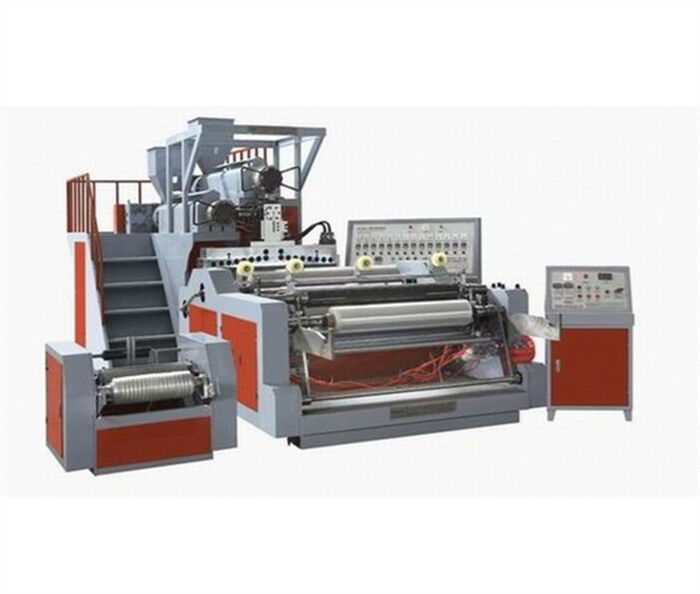

Three layers 1500mm LLDPE stretch film machine with following features:three extruders, three motors, three inverters,simple degisn,easy operation,low noise, stable running, especially winding part is controlled by PLCtouch screen. The machine is equipped with extruder, traction part, leveling part, edge trimming, winding and finished roll automatic changing etc.
How is stretch wrap made?
A Guide to Stretch Wrap. Stretch Wrap- A highly stretchable plastic film commonlymade from Linear low-density polyethylene (LLDPE) that is wrapped around items. The elastic recovery keeps the items tightly bound. Stretch film is commonly used towrap products on pallets and secure them to each other and the pallet.
Feature:
1. LLDPE,LDPE virgin raw material, recycled material,masterbatch and additives materia
2. inveter control film extruder speed,save power,ECO andsave cost.
3. Film thickness 0.017mm-0.04mm
4. Film width 100mm-500mm
5. Film suit forStretch film,pallet packing,carton packing,building material packing,auto parts packing,hardware packing,luggage wrap packing,
6. Screw material is 38CrMoAl,can use long time
7. Warrant is one year,machine can running nonstop,24 hours a day, 7 days a week
8. Machine with simple design,easy operate
9. Machine is economic design,suit for new beginer or starters
10. Machine power 220V,380V,440V,480V(Customized based on request,For example: USA 480V 60Hz, Mexico 440V/220V 60Hz, Saudi Arabia 380V 60Hz, Nigeria 415V 50Hz...)
11. Afford after sale service,can send engineer to buyer factory,to install machine and afford training service.
12. We are welcomed customersCustomized machines or OEM design.
Optional Equipment:
1)Auto load
2)Auto dry hopper
3)Motorize net changer
4)Hydraulic net changer
5)gule pump
6.air compressor
7.Chiller
8.Waste film crush online
Main Technical Parameter:
|
Item |
1500mm three layers stretch film machine |
|
crew diameter(mm) |
Dia.75mm, 65x2 mm |
|
Raw Material |
LLDPE,LDPE |
|
Film width |
1500mm |
|
layer |
Three layers(A/B/C) |
|
Film Color |
Transparent,Black,Red,White,blue…bag color changed by mastbatch |
|
L/D ratio of screw (L/D) |
30 : 1 |
|
Width of die head (mm) |
1800 (mm) |
|
Width of finished products(mm) |
1500 (500 ×3 rolls) |
|
Thickness of finished products (mm) |
0.008-0.05 (mm) |
|
Structure of film layers |
Three layers |
|
Max output (kg/h) |
150 (kg/h) |
|
Linear speed of machinery (m/min) |
50-100 (m/min) |
|
Traction power (kw) |
2.2 ×2 (kw) |
|
Total power (KW) |
150 kw |
|
Overall dimensions (L*W*H) |
8000*4600*3500mm |
|
Weight (T)(About) |
5T |
|
Air Shaft Diameter |
76mm |
|
MachineWorking time |
24 hours*7 |
|
Delivery Time |
45~90 days |
|
Warranty |
1 year |
|
Power |
Customized based on request (For example: USA 480V 60Hz, Mexico 440V/220V 60Hz, Saudi Arabia 380V 60Hz, Nigeria 415V 50Hz...) |
※Correct specifications depend on the actual model. All specifications are subject to change without prior notice.
Our Main parts cooperator as following brand,but standard parts all made from China.
