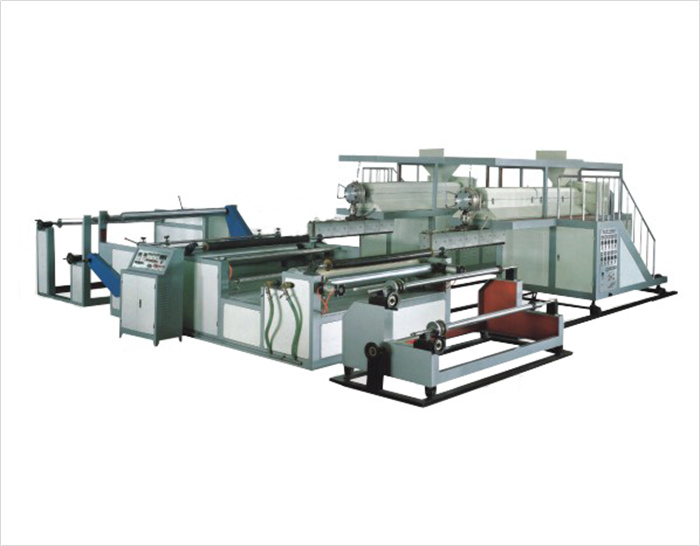

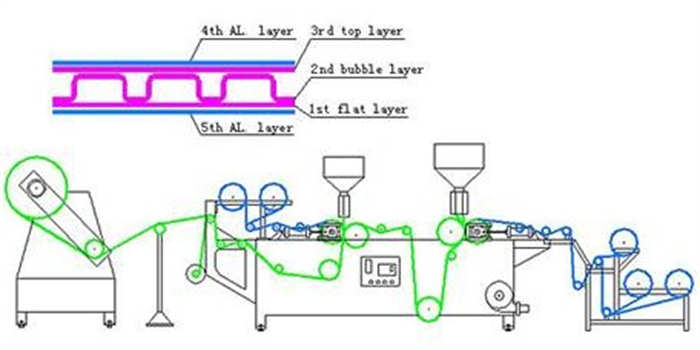

Five layers air bubble film machine also called air bubble wrap film extrusion,machine use Low Density Polyethylene(LDPE) proudce air bubble film.
Air bubble film machine has 11 units:extruder,vacuum pump,air bubble forming unite,slitting unite,edge trimming unit,waste film collection unit,leveling unit,winding unit,air compressor,cooling system and electric control system. It can achieve the mechanotronics from raw material feeding from the charging barrel until the finished roll automatic control.
five layers air bubble film machine also called air bubble wrap film extrusion,machine use Low Density Polyethylene(LDPE) proudce air bubble film.
Air bubble film machine has 11 units:extruder,vacuum pump,air bubble forming unite,slitting unite,edge trimming unit,waste film collection unit,leveling unit,winding unit,air compressor,cooling system and electric control system. It can achieve the mechanotronics from raw material feeding from the charging barrel until the finished roll automatic control.

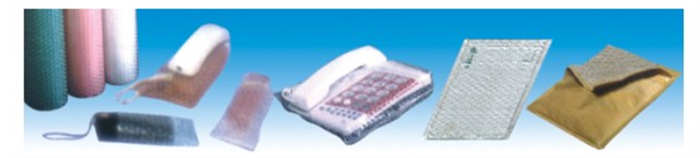

Packaging solutions: Dust covers, bubble wrap etc. for fragile items like glassware, mirrors, picture frames, ceramics, chinaware, pottery, handicrafts etc.
1. Anti-static packaging covers
2. Packaging of consumer durables and white goods like TV covers, Refrigerator packaging, LCD / LED packaging etc.
3. Packing material for painted surface of components
Main Technical Variables:
|
Model |
KDPEG-1000 |
KDFPG-1200 |
KDPEG-1500 |
|
Raw Material |
LDPE,recycle material,masterbatch and additives materia |
||
|
Screw Diameter |
φ65mm+φ50mm |
φ75mm+φ60mm |
φ90mm+φ70mm |
|
Bubble film Max. width |
600mm |
1200mm |
1500mm |
|
Bubble Film Layer |
5 layers |
||
|
Bubble Film Color |
Transparent,Black,Red,White,blue…bag color changed by mastbatch |
||
|

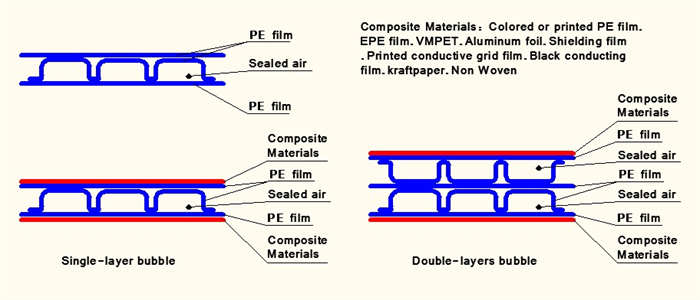

Laminate film |
PE film,PET film,aluminum film,non woven film,Paper |
||
|
Output |
55kg/h |
70kg/h |
90kg/h |
|
Total power |
75kw |
82kw |
98kw |
|
L/D Ratio Of Screw |
28：1 |
28：1 |
28：1 |
|
Water Consumption |
0.5m3/h |
0.5m3/h |
0.5m3/h |
|
Machine Weight |
3.5 |
4.5 |
5 |
|
Power Voltage |
220V,380V,440V(Customized based on request (For example: USA 480V 60Hz, Mexico 440V/220V 60Hz, Saudi Arabia 380V 60Hz, Nigeria 415V 50Hz...) |
||
|
Air Shaft Diamater |
without paper core ,58mm,76mm |
||
|
Machine Working Time |
24 hours*7 |
||
|
Warranty |
1 year |
||
|
Technical Assistance |
Engineers available to service machinery overseas |
||
※Correct specifications depend on the actual model. All specifications are subject to change without prior notice.
Our Main parts cooperator as following brand,but standard parts all made from China.
